Plastic moulds for bottles, caps and preforms
By process
Injection Blow MoldSmall bottles for pharma, personal care and food, neck finished in the injection stage.Inquiry now
Injection MoldCap and closure moulds up to 48 cavities, hot runner, unscrewing or slider ejection.Inquiry now
PET Preform MoldPreforms designed back from the final bottle, with individual cavity locks.Inquiry now
Extrusion Blow MoldJerrycans, handle bottles and drums, with fine parting lines.Inquiry now
PET Blow MoldMirror-finish cavities and room-temperature cooling for automatic production.Inquiry now
Blow moulds we have built for water bottles, household chemical bottles, jerrycans and drums. Each page lists the mould material, cavities, part weight and cycle time.
5Gallon Bottle Mould
1 cavity, 40s cycle5L Mineral Water Bottle Mould
1+1 cavities, 12s cycle900ml Coca-Cola Sports Water Bottle Mould
2+2 cavities, 17s cycle80ml Nestle Bottle Mould
12 cavities, 9s cycle4L Handle Bottle Mould
2+2 cavities, 20s cycle1.5L Jerrycan Mould
2+2 cavities, 25s cycle1L Long Neck Bottle Mould

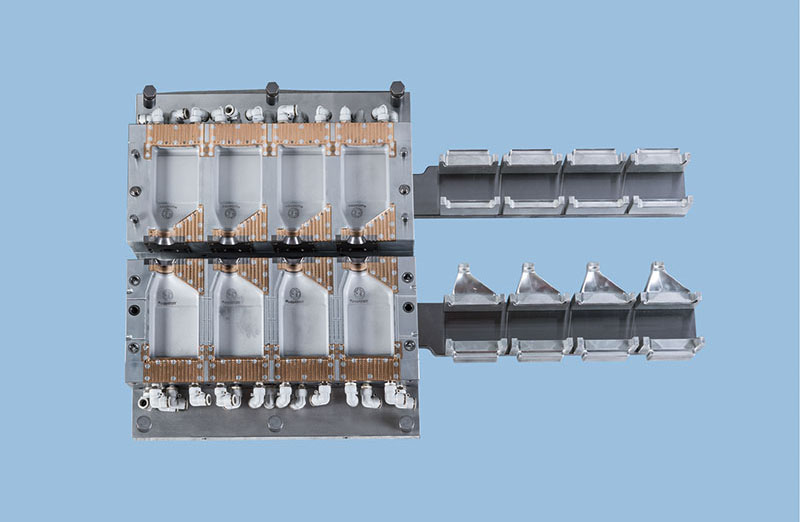

4+4 cavities, 16s cycle1L Jerrycan Mould
4+4 cavities, 24s cycle1L Bottle Mould
5+5 cavities, 17s cycle750ml Dettol Bottle Mould
2+2 cavities, 20s cycle750ml Angle Neck Bottle Mould
6+6 cavities, 18s cycle50L Drum Mould
1 cavity, 65s cycle20L Drum Mould
1+1 cavities, 60s cycleInjection moulds we have built for flip-top caps, water and oil caps, sprayer caps and jars, from 4 to 48 cavities. Each page lists steels, ejection, runner and cycle time.
Spice Flip-Top Cap Mould
4 cavities, 12s cycle5Gallon Cap Mould

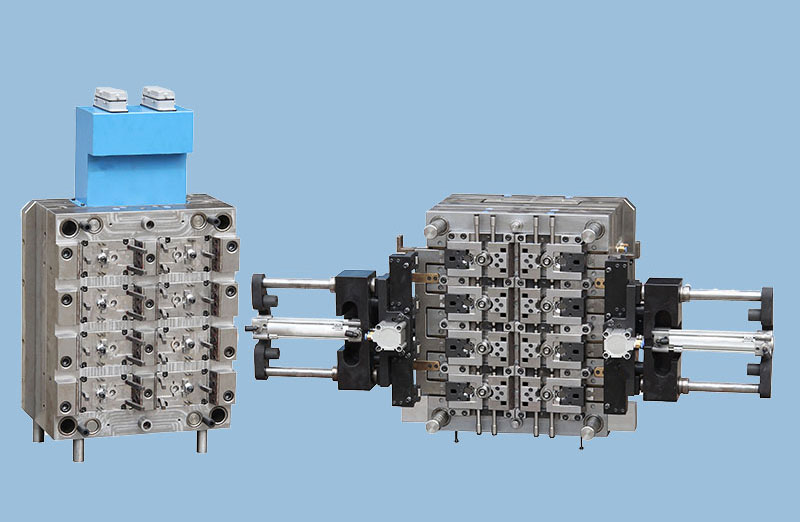

12 cavities, 9s cycleDouble Safety Ring Flip-Top Cap Mould
8 cavities, 20s cycleMineral Water Cap Mould
48 cavities, 6s cycleEdible Oil Cap Mould
24 cavities, 12s cycleSprayer Cap Mould
6 cavities, 13s cycleHair Cream Jar Mould
6 cavities, 20s cycleHair Spray Mould
16 cavities, 12s cycleDettol Cap Mould
12 cavities, 13s cycleDGW Cap Mould
12 cavities, 12s cycleLaundry Detergent Cap Mould
16 cavities, 18s cycleLubricant Flip-Top Cap Mould
4 cavities, 20s cycleShampoo Flip-Top Cap Mould
16 cavities, 14s cycleBi-color Flip-Top Cap Mould
8 cavities, 16s cycleEyedrops Cap Mould
12 cavities, 20s cycleAsk for a quotation
Tell us about the bottle or cap: volume, weight, resin, the cavities you need and the machine it will run on. A drawing or a sample photo helps.
Tel +86 512 5844 1397
Email info@victormold.com
The enquiry form is loading. If it does not appear, open the online form or email info@victormold.com.
