Plastic Bottle Mold

Blow moulds we have built for water bottles, household chemical bottles, jerrycans and drums. Each page lists the mould material, cavities, part weight and cycle time.

Food Packaging

Moulds for water and beverage bottles, from an 80 ml bottle to the 5 gallon water bottle.

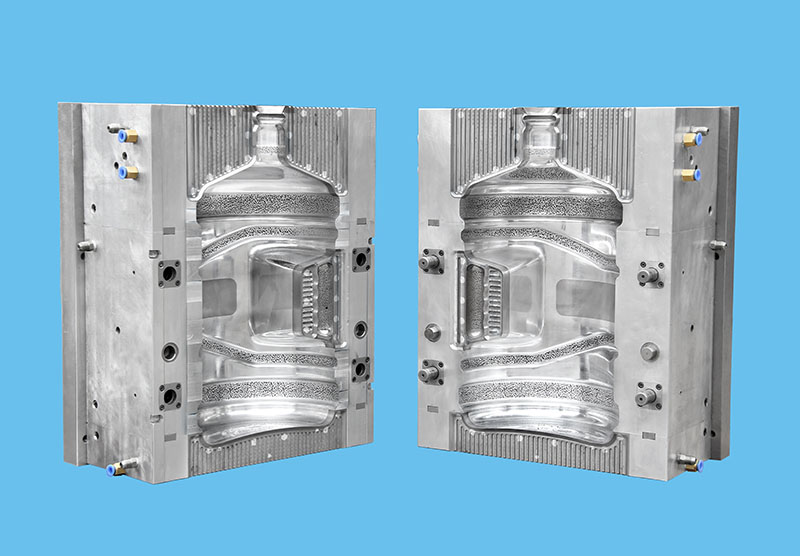

5Gallon Bottle Mould

1 cavity, 40s cycle

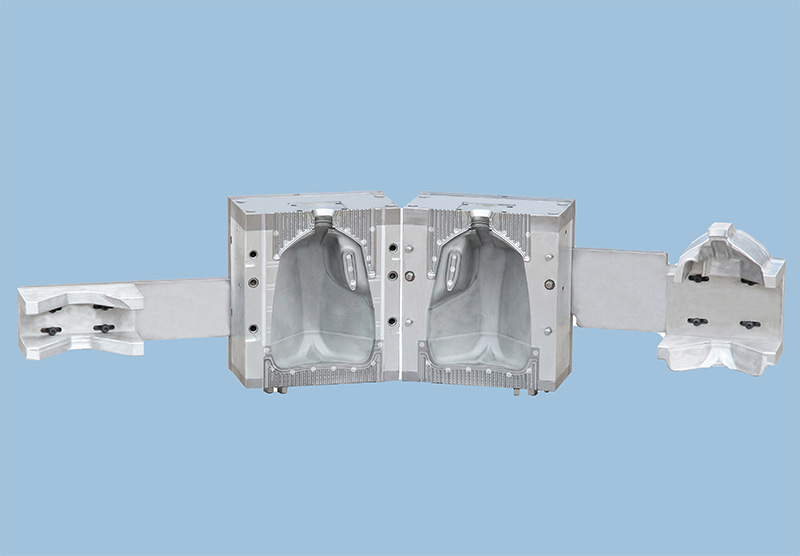

5L Mineral Water Bottle Mould

1+1 cavities, 12s cycle

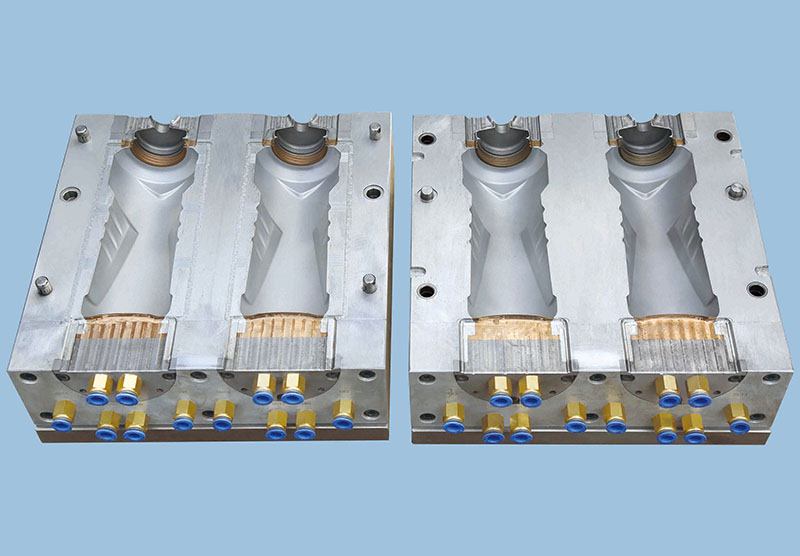

900ml Coca-Cola Sports Water Bottle Mould

2+2 cavities, 17s cycle

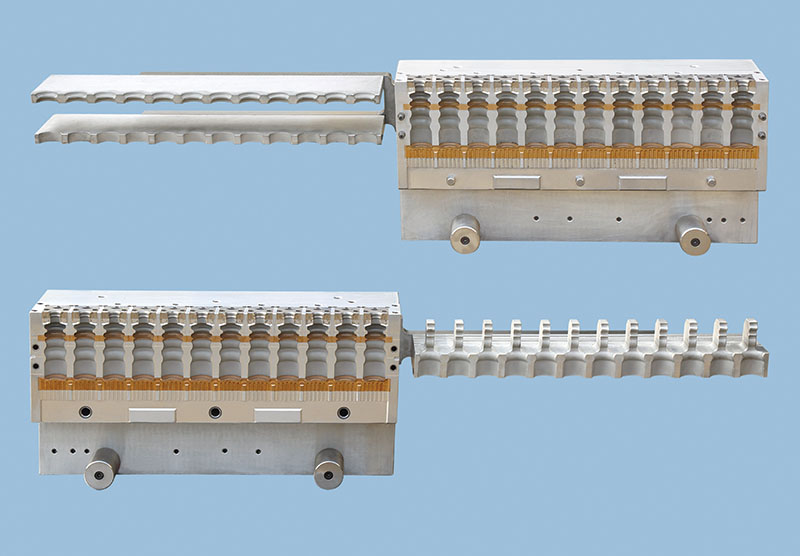

80ml Nestle Bottle Mould

12 cavities, 9s cycle

Commodity Packaging

Moulds for household and personal care bottles, jerrycans and handle bottles.

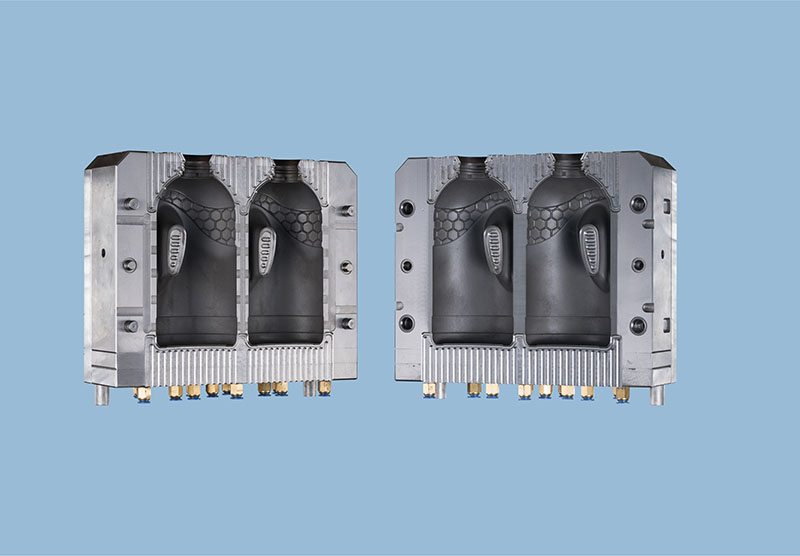

4L Handle Bottle Mould

2+2 cavities, 20s cycle

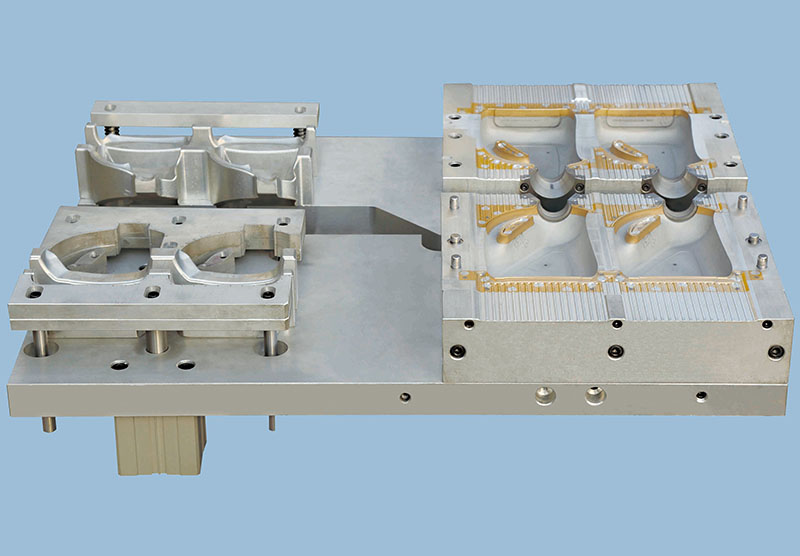

1.5L Jerrycan Mould

2+2 cavities, 25s cycle

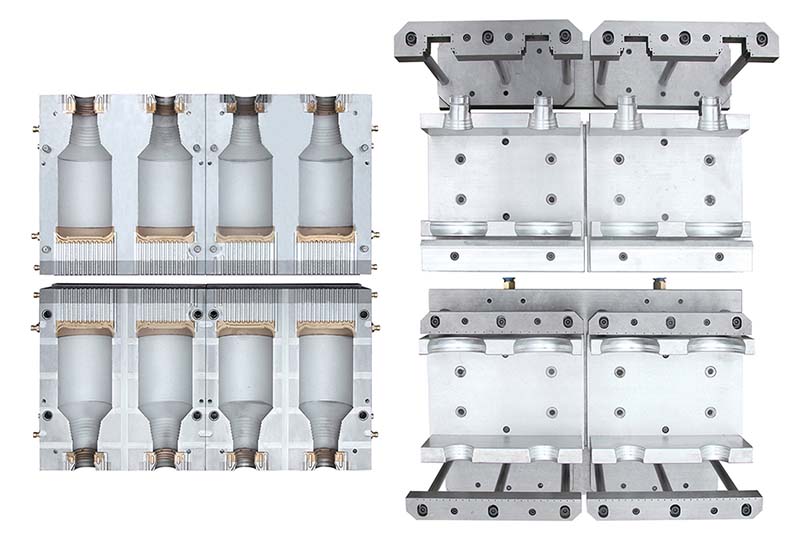

1L Long Neck Bottle Mould

4+4 cavities, 16s cycle

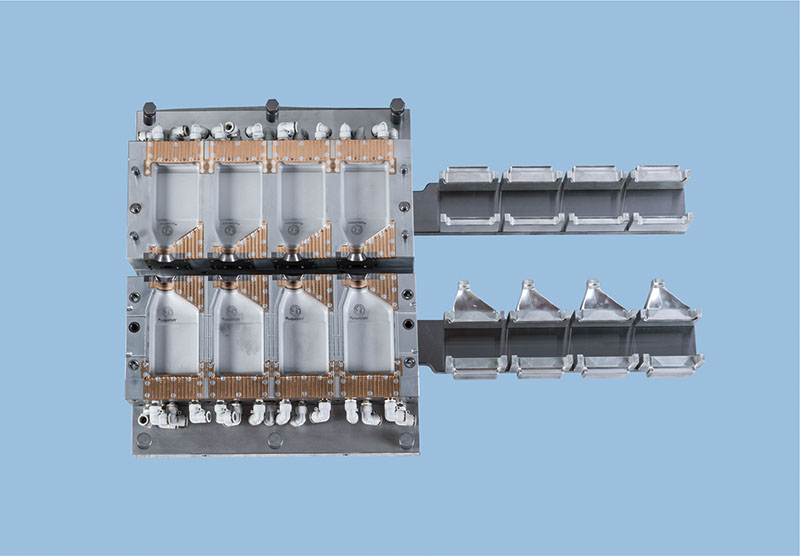

1L Jerrycan Mould

4+4 cavities, 24s cycle

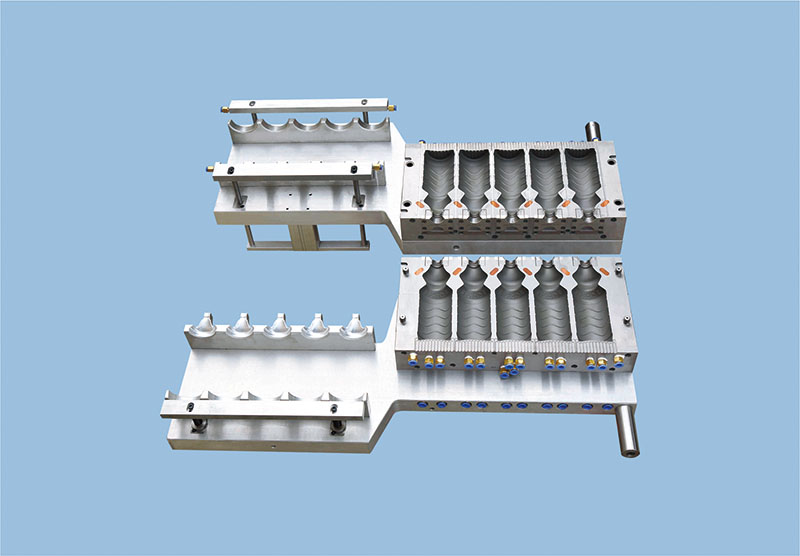

1L Bottle Mould

5+5 cavities, 17s cycle

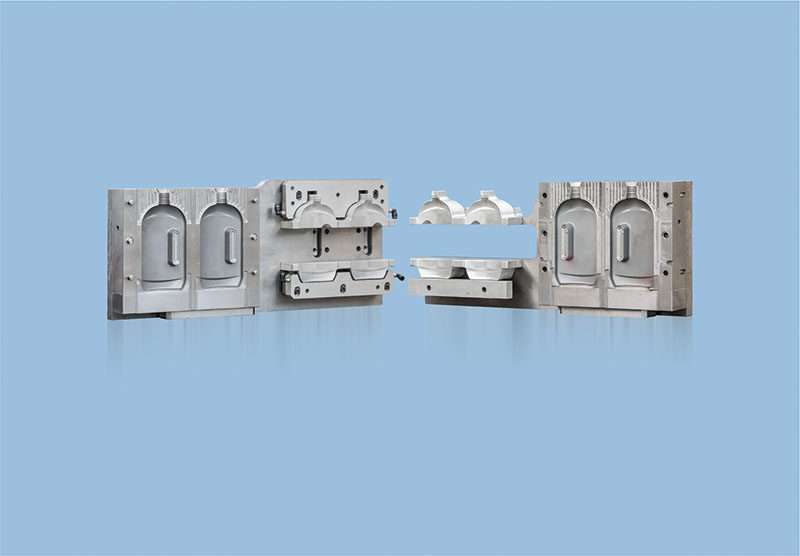

750ml Dettol Bottle Mould

2+2 cavities, 20s cycle

750ml Angle Neck Bottle Mould

6+6 cavities, 18s cycle

Drum

Moulds for 20 L and 50 L drums.

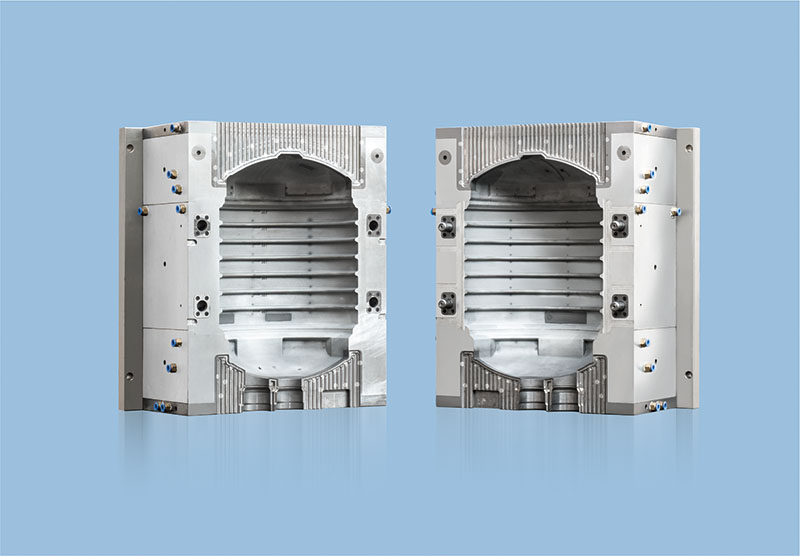

50L Drum Mould

1 cavity, 65s cycle

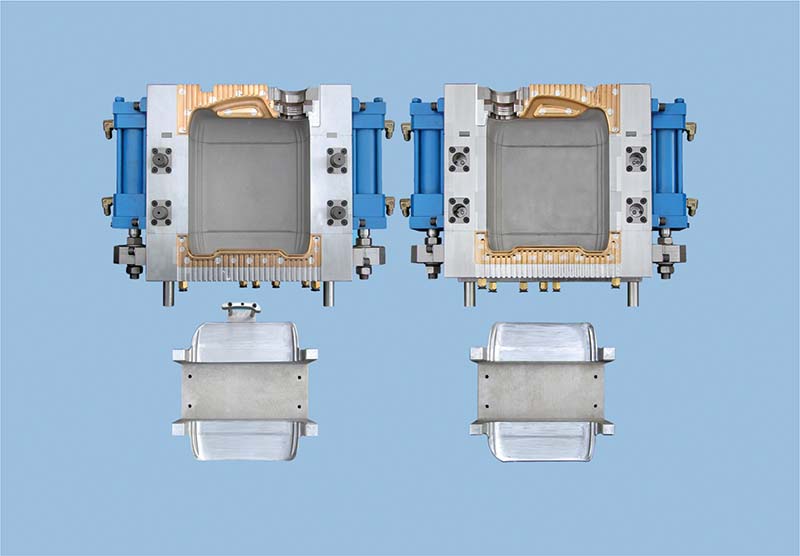

20L Drum Mould

1+1 cavities, 60s cycle

Ask for a quotation

Tell us about the bottle or cap: volume, weight, resin, the cavities you need and the machine it will run on. A drawing or a sample photo helps.
