Injection Mold
Injection moulds for caps, closures and jars. One example from our records:
Features
- High-precision tooling
- High hardness
- Experienced mould design
- Long service life
Example: cap mould with slider
| Mould size | 780 × 470 × 470 mm |
|---|---|
| Cavities | 48 |
| Core and cavity | ASSAB S136 (HRC52) |
| Mould base | 2316 stainless steel (Rc30) |
| Mould life | 3 million shots |
| Runner | TJ hot runner system |

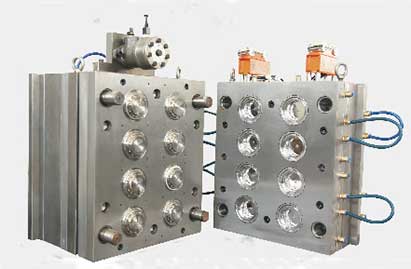

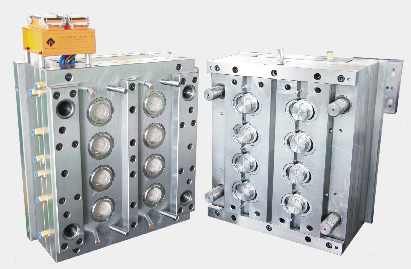

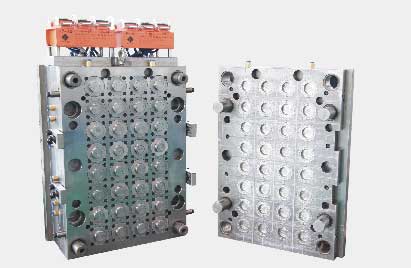

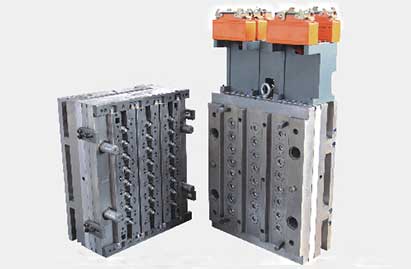

Moulds we have built
All productsAsk for a quotation
Asking about the Injection Mold? Mention it in your message. Tell us about the bottle or cap: volume, weight, resin, the cavities you need and the machine it will run on. A drawing or a sample photo helps.
