Plastic Bottle Mold, Commodity Packaging

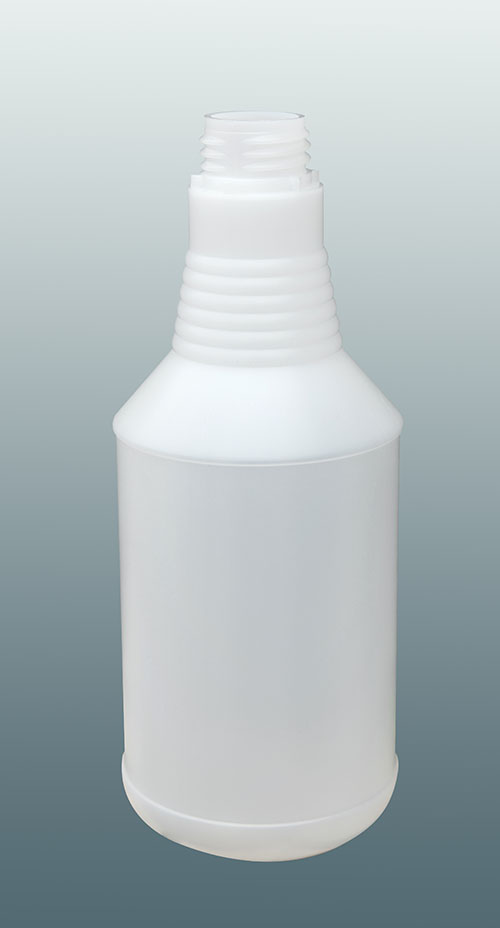

1L Long Neck Bottle Mould
- Cavities
- 4+4
- Cycle time
- 16s
- Part weight
- 56g
Mould specification
| Mould name | 1L Long Neck Bottle Mould |
|---|---|
| Material | Aluminum 7075 (HB150)Cutting edge with BeCuNeck Finishing Ring: SKD11 (HRC58~60) |
| Cavities | 4+4 CAV. |
| Part weight | 56g |
| Cycle time | 16s |
| Remarks | With Mask & Punch |
Figures are those of the mould as built for the customer. Cavities, steels and runner can be changed for your bottle or cap.
