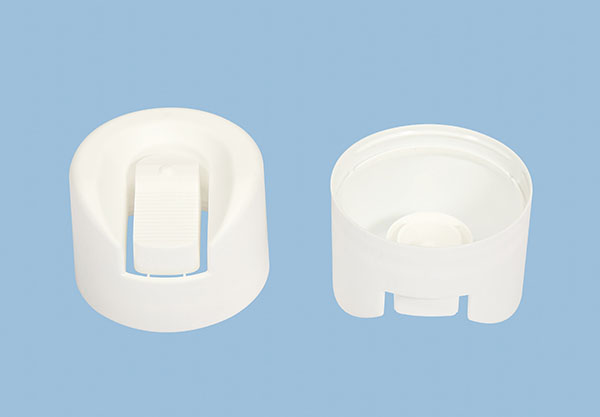

Mould specification
| Mould name | Sprayer Cap Mould |
|---|---|
| Material | Cores & Cavities: Germany 2083 + Germany 2344 (HRC48~50)Mould Plates: Stainless Steel (Rc30) |
| Cavities | 6 CAV. |
| Ejection | Eject Directly |
| Runner | YUDO Hot Runner System |
| Cycle time | 13s |
Figures are those of the mould as built for the customer. Cavities, steels and runner can be changed for your bottle or cap.
More plastic cap molds
All plastic cap molds
Ask for a quotation
Asking about the Sprayer Cap Mould? Mention it in your message. Tell us about the bottle or cap: volume, weight, resin, the cavities you need and the machine it will run on. A drawing or a sample photo helps.
